LAB TYPE DC POWER SUPPLIES

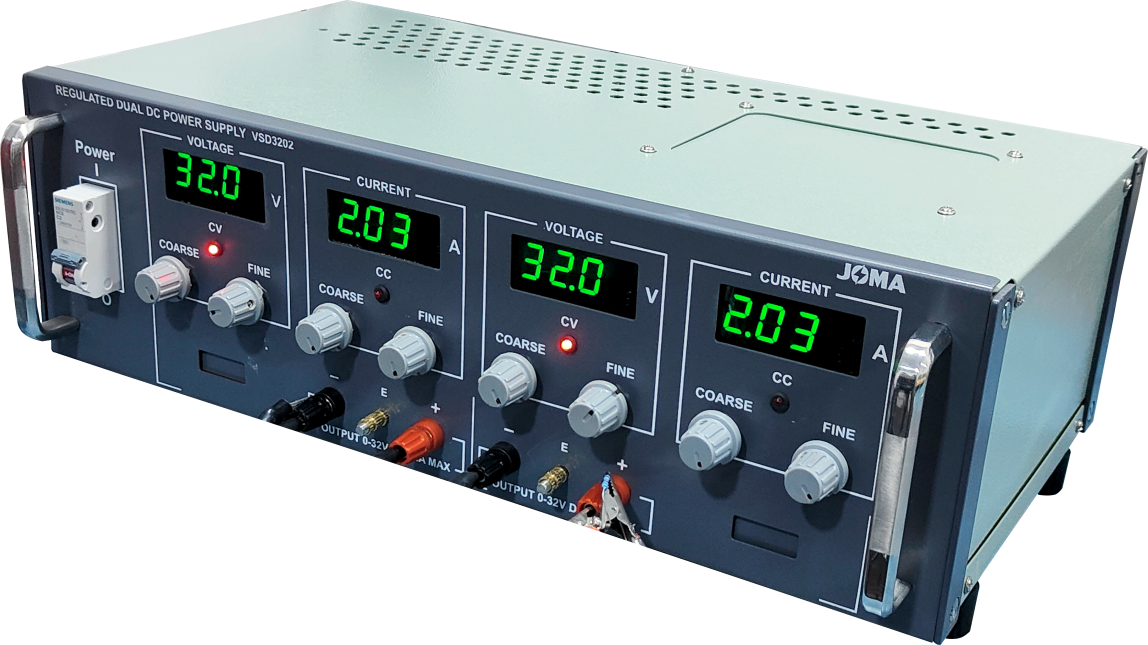

30 W-300 W DC Power Supplies
We offer a range 30 to 300 watts of Linear DC Regulated Power Supplies for use in Laboratories & Industries.
There are 15 models to choose from, with output power ranging from 30 watts to 300 watts. Output voltages of 0-16V, 0-32V, 0-64V and 0-128V DC are available for single output supplies.
Constant Voltage Mode:
Regulation:
Line: ±0.01% ±2mV for ±10% change in line output
Load: ±0.01% ±2mV for load change from zero to full load.
Ripple & Noise: 1mV rms max.
20Hz-20MHz
Constant Current Mode:
Regulation:
Line: ± 0.1% ±250µA for ±10% line change.
Load: ± 0.1% ±250µA for change in output voltage from 0 Volts to maximum output voltage.
Ripple & Noise: 0.04% rms.
Metering: 3 Digit DPM.
Meter Accuracy: ±3 counts.
Mode Indication: LED indication for constant voltage/constant current operating mode.
Output Polarity: Floating w.r.t. Ground.
Overload Protection: Automatic overload and short circuit protection.
30 W-300 W DC Power Supplies
We offer a range 30 to 300 watts of Linear DC Regulated Power Supplies for use in Laboratories & Industries.
There are 15 models to choose from, with output power ranging from 30 watts to 300 watts. Output voltages of 0-16V, 0-32V, 0-64V and 0-128V DC are available for single output supplies.
Constant Voltage Mode:
Regulation:
Line: ±0.01% ±2mV for ±10% change in line output
Load: ±0.01% ±2mV for load change from zero to full load.
Ripple & Noise: 1mV rms max.
20Hz-20MHz
COMMON GENERAL FEATURES
Warranty
BASIC WARRENTY OF 1 YEAR
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
Support Manual
OUTPUT VOLTAGE: _____V
OUTPUT CURRENT : _____A (AS PER PRODUCT)
INPUT LINE: 230V AC ±10%, 50 Hz, 1 Phase / 415V AC ±10%, 50Hz, 3 Phase
19” RACK ADAPTABLE
PHASE CONTROLLED PRE REGULATION PLUS LINEAR POST REGULATION
HIGH STABILITY AND CLOSE REGULATION
Download Manual
